Home >> Kia >> 2010 >> Forte EX, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - A4CF2 >> Automatic Transaxle System >> Differential >> Components and Components Location >> Components

Components and Components Location: Components

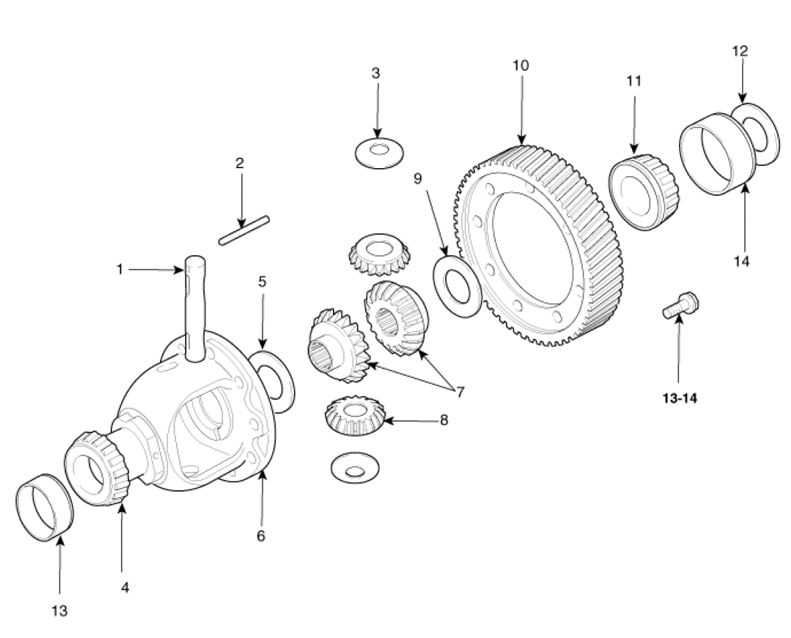

Fig 1: Exploded View Of Differential

G06798737

Courtesy of KIA MOTORS AMERICA, INC.
