Repair procedures: Replacement

Remove the front wheel & tire.
Tightening torque Nm (kgf.m, lb-ft):

90 ~ 110 (9.0 ~ 11.0, 65 ~ 80)

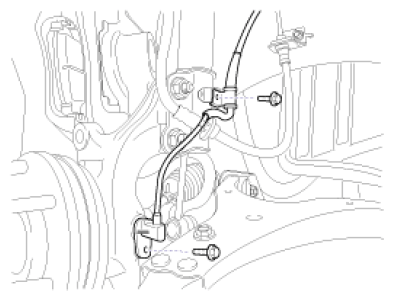

Remove the brake hose and the wheel speed sensor bracket from the front strut assembly by loosening the mounting bolts.

Fig 1: Removing Brake Hose & Wheel Speed Sensor Bracket From Front Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.

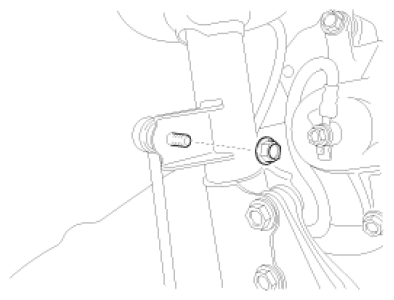

Disconnect the stabilizer link with the front strut assembly after loosening the nut.
Tightening torque Nm (kgf.m, lb-ft):

100 ~ 120 (10.0 ~ 12.0, 72 ~ 87)

Fig 2: Identifying Stabilizer Link Nut
Courtesy of KIA MOTORS AMERICA, INC.

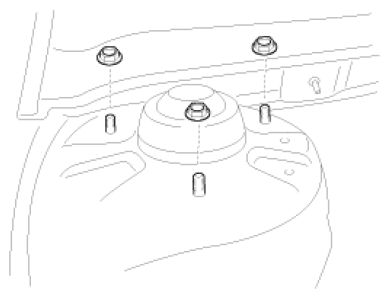

Remove the cap and than loosen the strut mounting nuts.

Fig 3: Identifying Strut Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

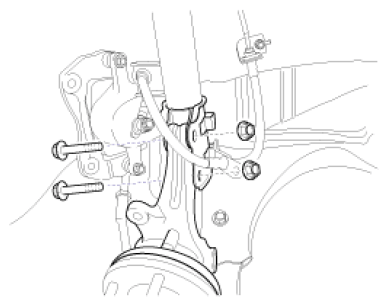

Disconnect the front strut assembly with the knuckle by loosening the bolt & nut.
Tightening torque Nm (kgf.m, lb-ft):

140 ~ 160 (14.0 ~ 16.0, 101 ~ 115)

Fig 4: Disconnecting Front Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
