Side Pressure Sensor
CAUTION:
- Removal of the airbag must be performed according to the precautions/procedures described previously.
- Before disconnecting the side impact sensor connector (s), disconnect the side airbag connector (s).
- Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the front door trim. (For Coupe, refer to FRONT DOOR . For Sedan, refer to FRONT DOOR .)

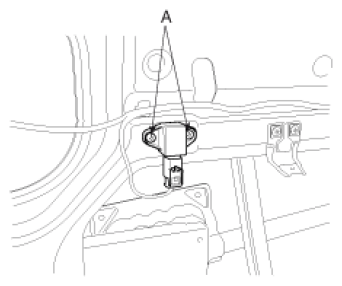

- Disconnect the side pressure sensor connector and remove the side pressure sensor after removing 2 rivets (A).
