Side Impact Sensor
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.
- Remove the door scuff trim. (Refer to the
(For Coupe, refer to INTERIOR TRIM
. For Sedan, refer to INTERIOR TRIM
.)
- Remove the center pillar trim. (Refer to the
(For Coupe, refer to INTERIOR TRIM
. For Sedan, refer to INTERIOR TRIM
.)
- Disconnect the side impact sensor connector.

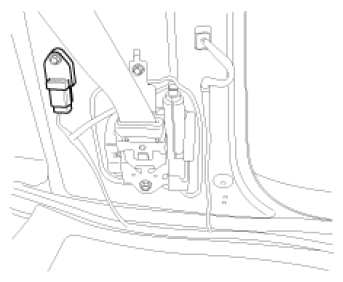

- Loosen the side impact sensor mounting bolt and remove the side impact sensor.
Courtesy of KIA MOTORS AMERICA, INC.
