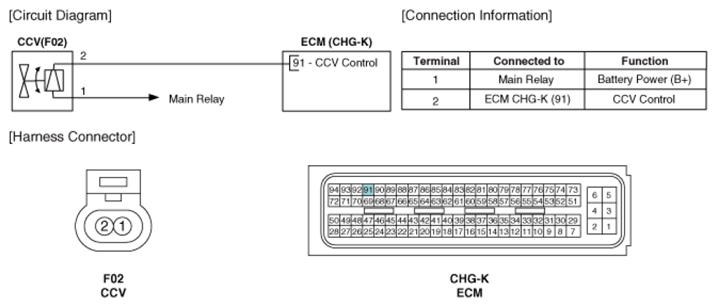

Home >> Kia >> 2010 >> Forte EX, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Canister Close Valve (CCV) >> Schematic Diagrams >> Circuit Diagram
