Home >> Kia >> 2010 >> Forte EX, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Head Assembly >> Cylinder Head >> Components And Component Locations >> Components

Components And Component Locations: Components

[2.0 ULEV - Single CVVT]

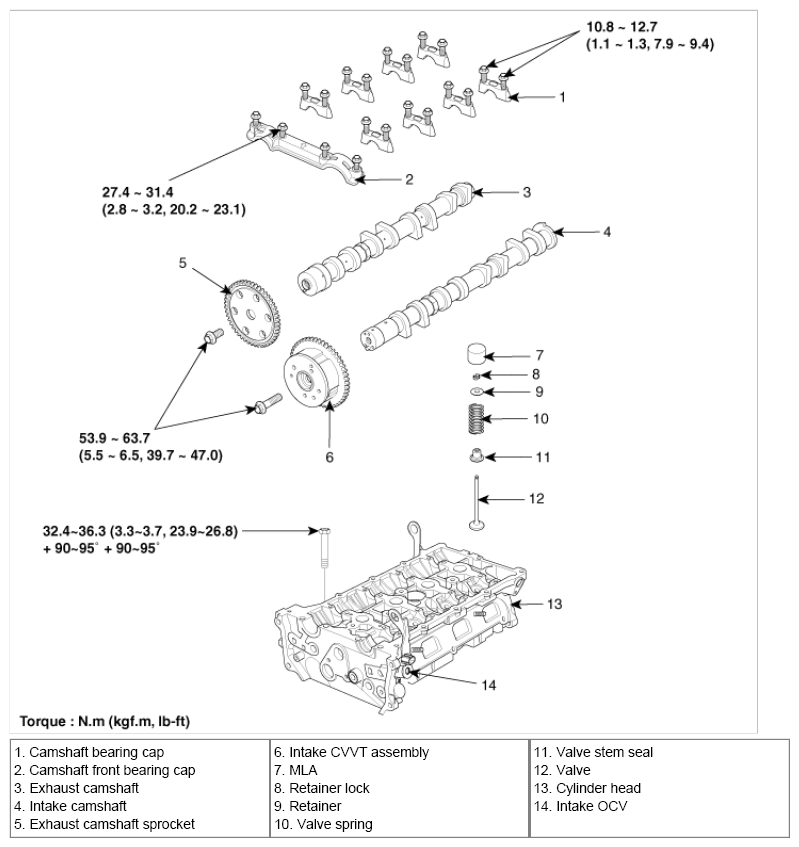

Fig 1: Locating Cylinder Head Components (2.0 ULEV - Single CVVT) With Torque Specifications
G06494175Courtesy of KIA MOTORS AMERICA, INC.

[Dual CVVT]

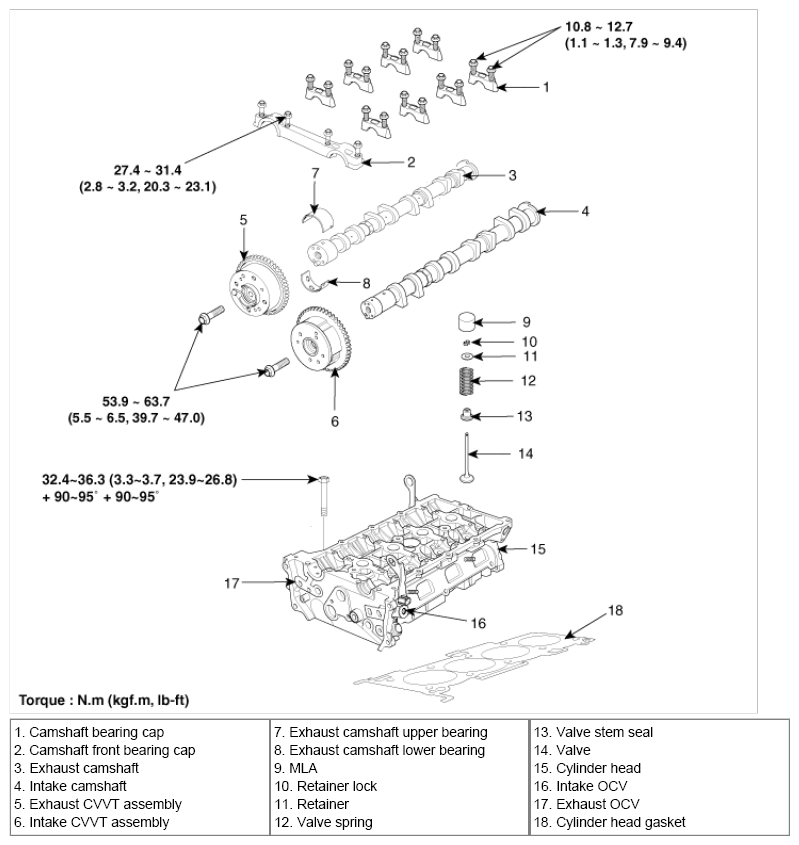

Fig 2: Locating Cylinder Head Components (Dual CVVT) With Torque Specifications
G06494176Courtesy of KIA MOTORS AMERICA, INC.
