Components and Components Location: Components

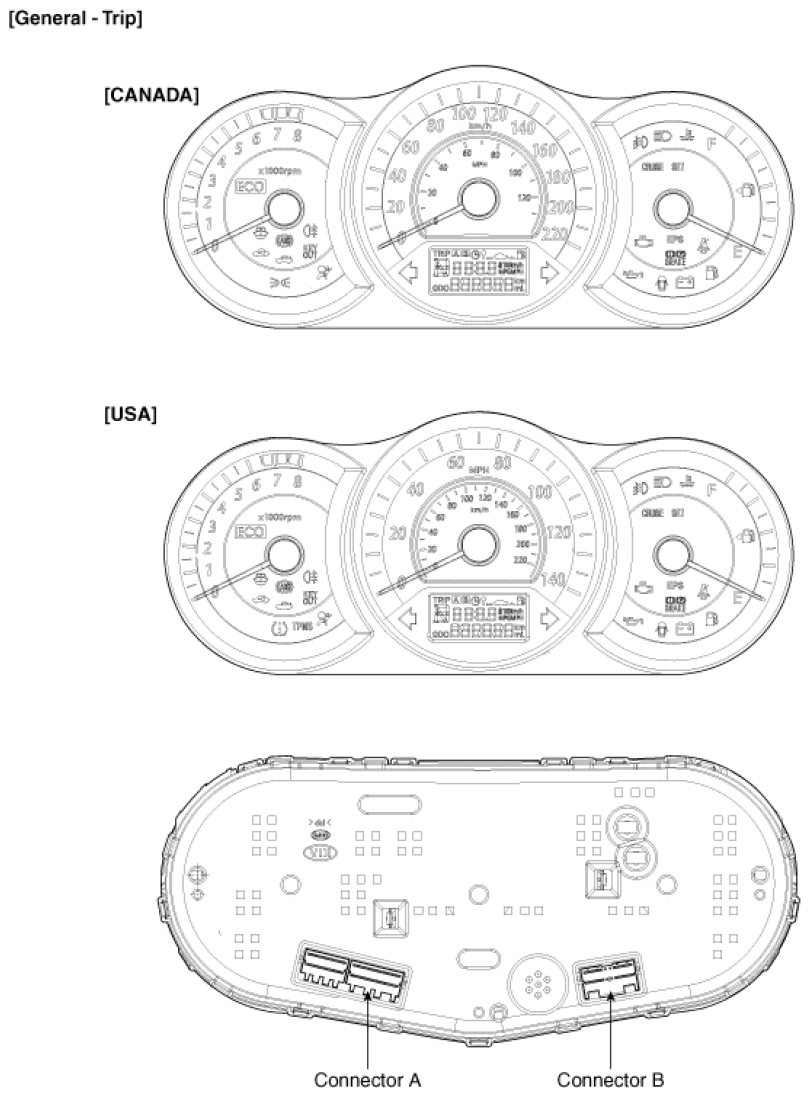

Fig 1: Identifying Instrument Cluster (General - Trip)

Courtesy of KIA MOTORS AMERICA, INC.

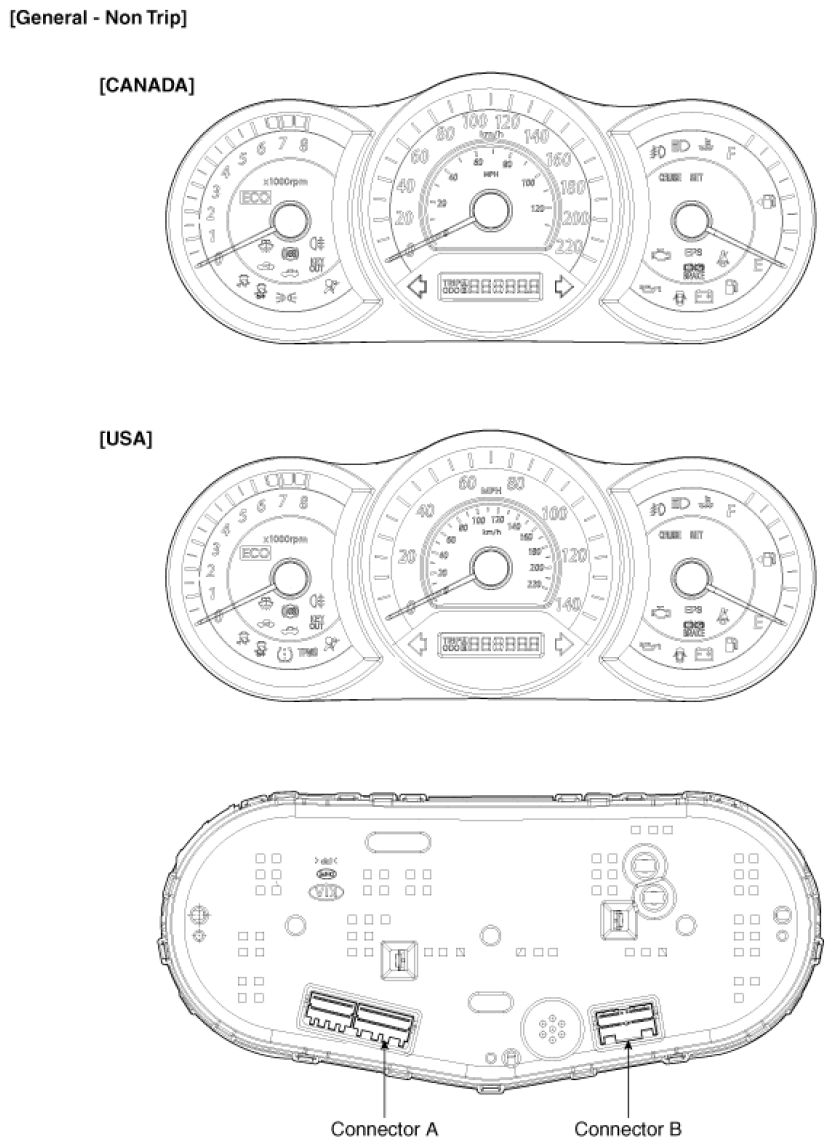

Fig 2: Identifying Instrument Cluster (General - Non Trip)

Courtesy of KIA MOTORS AMERICA, INC.

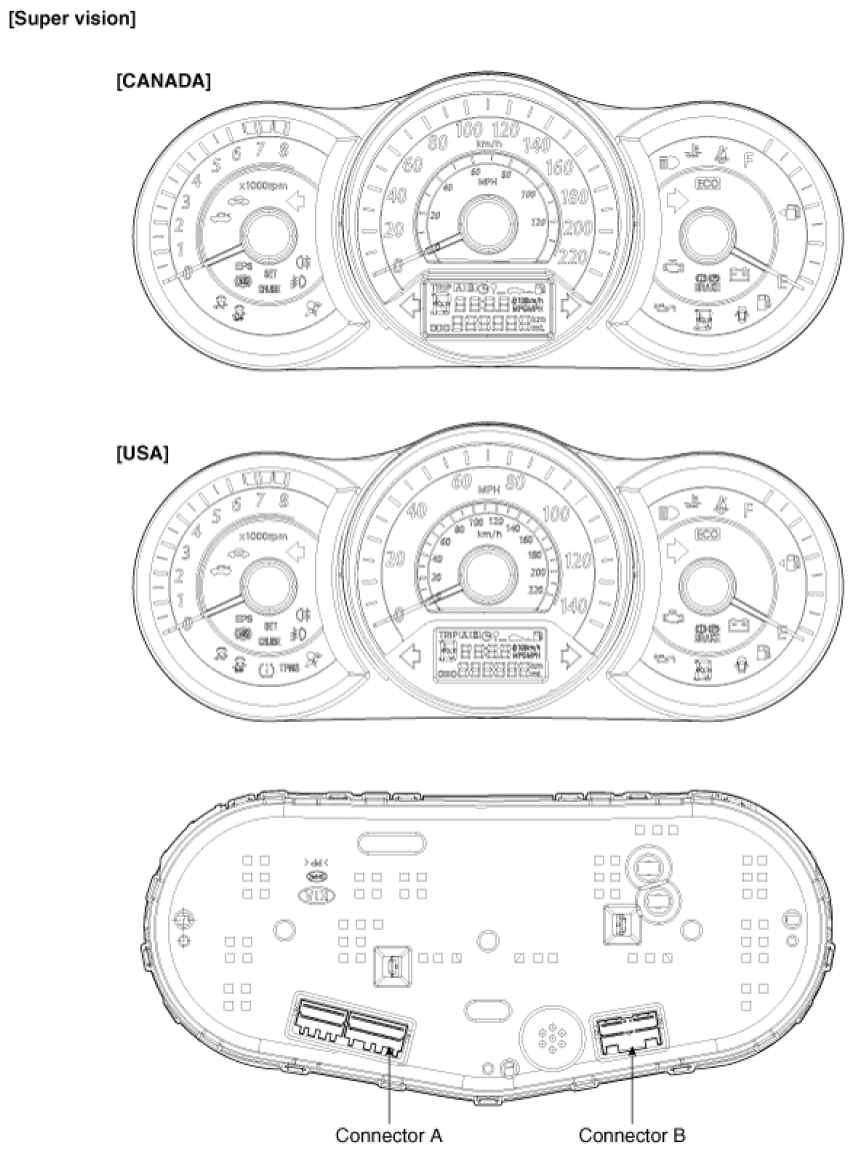

Fig 3: Identifying Instrument Cluster (Super Vision)

Courtesy of KIA MOTORS AMERICA, INC.

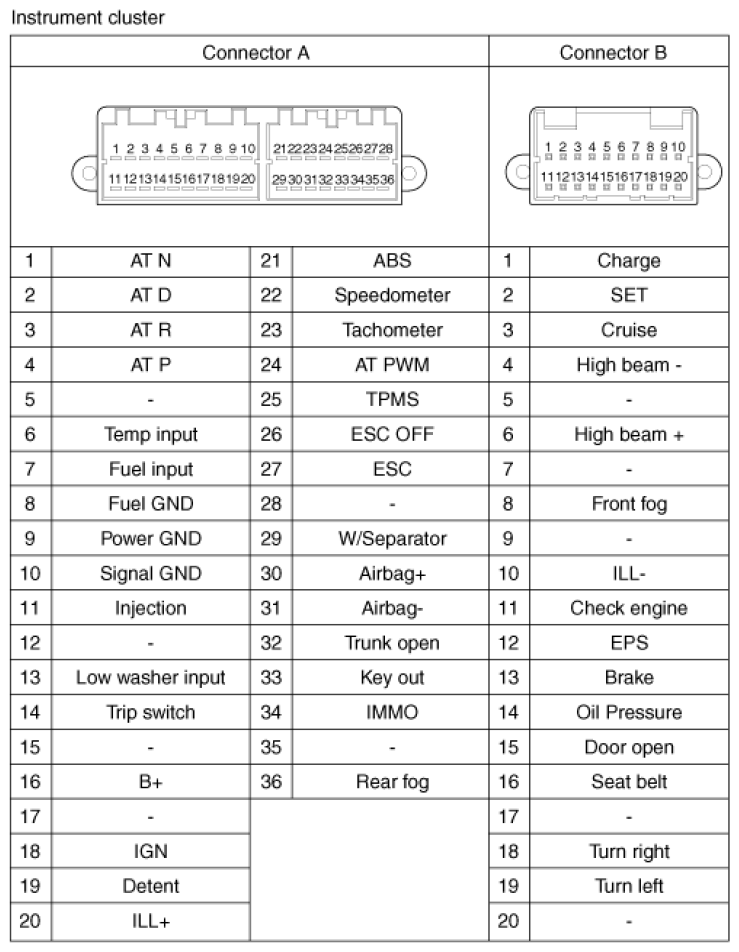

Fig 4: Identifying Instrument Cluster Connectors & Terminals

Courtesy of KIA MOTORS AMERICA, INC.
