Repair procedures: Replacement

NOTE:
  • Be careful not to damage the hood and body.
  • When removing the clips, use a clip remover.
  1. Remove the front bumper mounting screw.
  2. After loosening the fender mounting bolts, remove the fender (A).

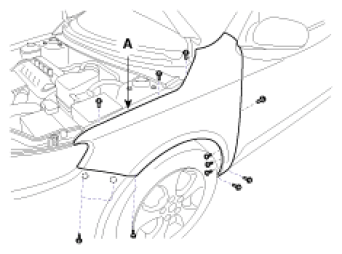

    Fig 1: Identifying Fender & Mounting Bolts
    G06495751Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
