Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering column upper and lower shrouds (A).

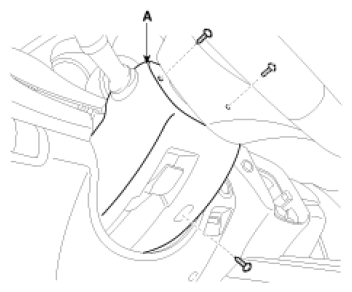

    Fig 1: Identifying Steering Column Shrouds
    G06496494Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the electronic steering column lock connector (A).

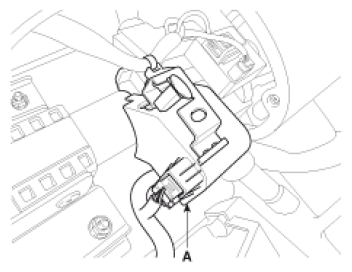

    Fig 2: Identifying Electronic Steering Column Lock Connector
    G06496495Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the electronic steering column lock (A) after removing the shear bolts.

    (Refer to STEERING COLUMN AND SHAFT )

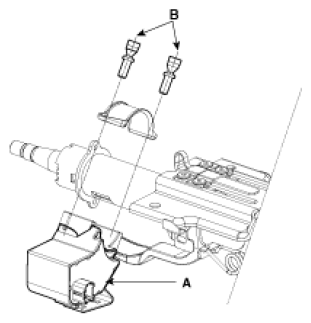

    Fig 3: Identifying Electronic Steering Column Lock & Shear Bolts
    G06496496Courtesy of KIA MOTORS AMERICA, INC.
