Trunk lid Switch

  1. Remove the trunk trim.

    (Refer to TRUNK TRIM REPLACEMENT .)

  2. Disconnect the 3P connector from the actuator.

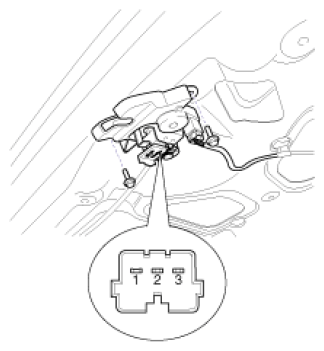

    Fig 1: Identifying Trunk Lid Switch Actuator 3P Connector
    G06496128Courtesy of KIA MOTORS AMERICA, INC.
  3. Check for continuity between the terminals in each switch position according to Fig 2.
    Fig 2: Trunk Lid Switch Continuity Reference Chart
    G06496129Courtesy of KIA MOTORS AMERICA, INC.
