Front Stabilizer Bar: Inspection
- Check the stabilizer bar for deterioration and damage.
- Check all bolts for damage and deformation.
- Check the stabilizer link dust cover for cracks or damage.

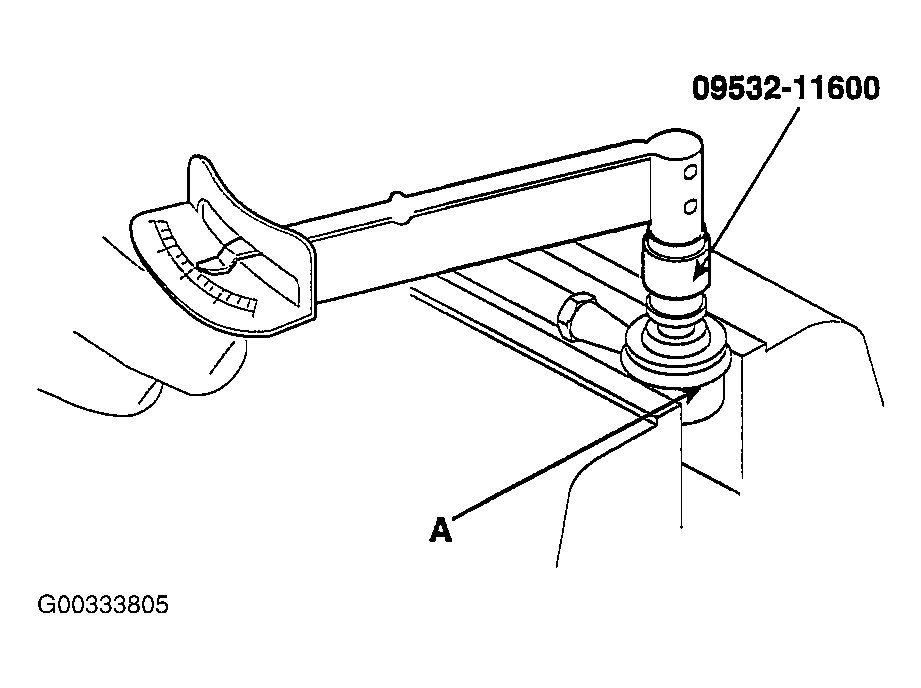

- Check the stabilizer link ball joint (A) for rotating torque.
Courtesy of KIA MOTORS AMERICA, INC.
- If there is a crack in the dust cover, replace it and add grease.
- Shake the stabilizer link ball joint stud several times.
- Mount the self-locking nut on the ball joint, and then measure the ball joint rotating torque. Standard value is 1.7-3.2 N.m (17-32 kgf.cm, 15-27 lb.in).
- If the rotating torque is higher than the upper limit of the standard value, replace the stabilizer link.
- If the rotating torque is below the lower limit of the standard value, the ball joint may be reused unless it has drag and excessive play.
