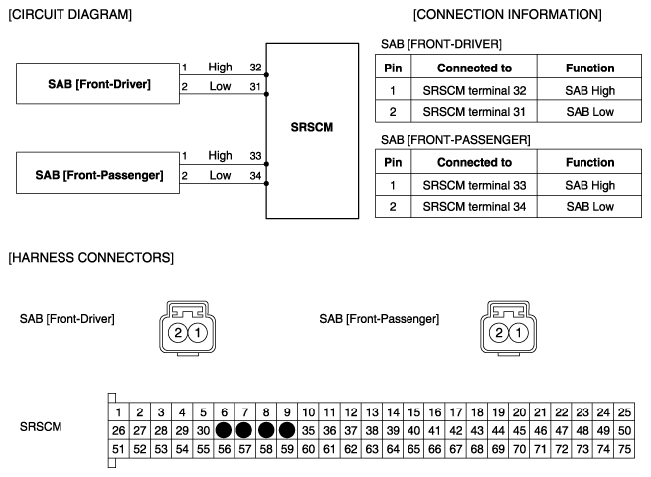

Home >> Kia >> 2009 >> Spectra5 2.0 2, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Supplement Restraint System Control Module (SRSCM) - Except With OCS >> Troubleshooting >> B1380: Side Airbag [Front-Driver] Circuit Short To Ground; B1384: Side Airbag [Front-Passenger] Circuit Short To Ground >> Schematic Diagram
