Engine Block: Component

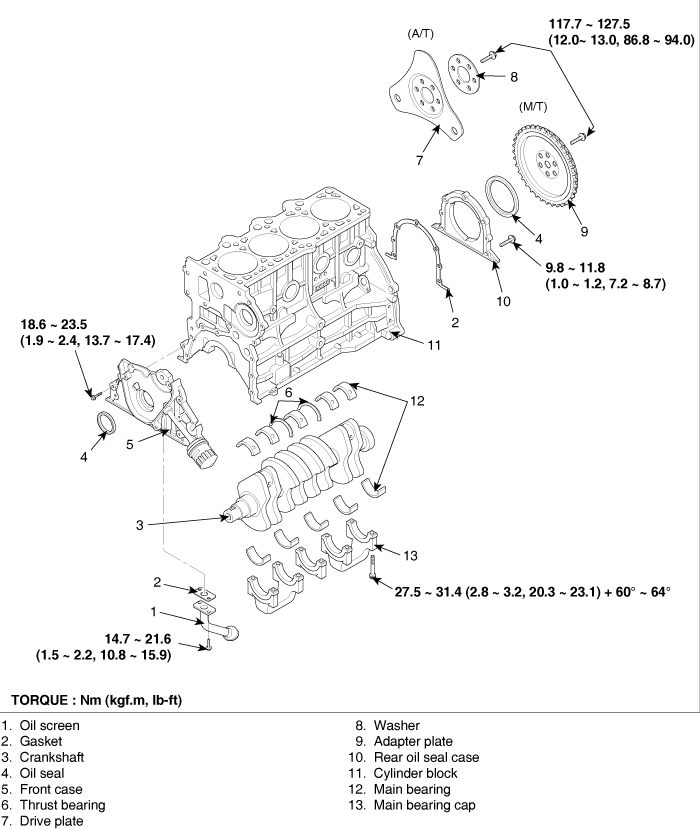

Fig 1: Exploded View Of Block Assembly With Torque Specifications (1 Of 2)
G00488493Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Exploded View Of Block Assembly With Torque Specifications (2 Of 2)
G00719119Courtesy of KIA MOTORS AMERICA, INC.
