Clutch Release Cylinder: Components

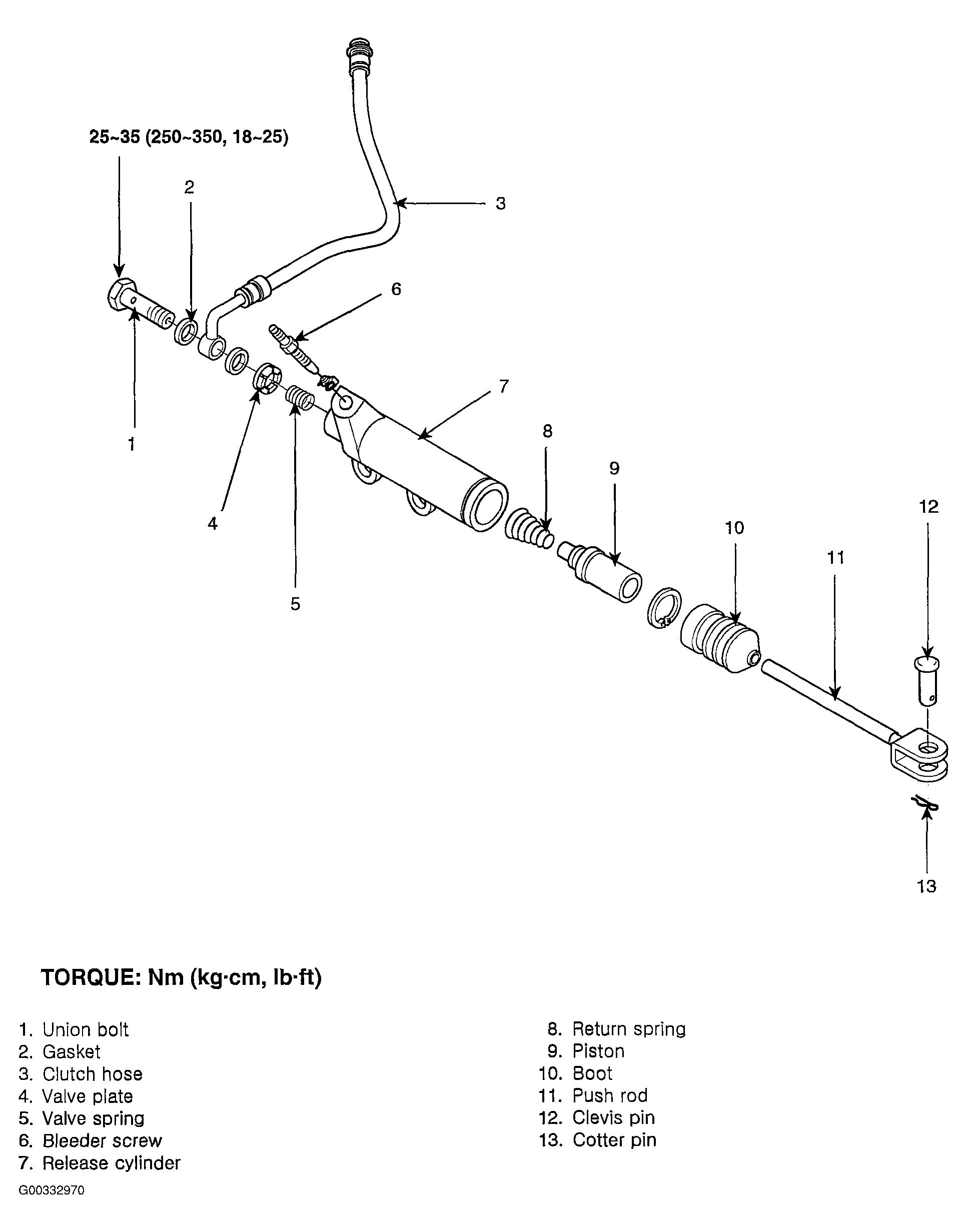

Fig 1: Exploded View Of Clutch Release Cylinder With Torque Specifications

G00332970

Courtesy of KIA MOTORS AMERICA, INC.
