Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

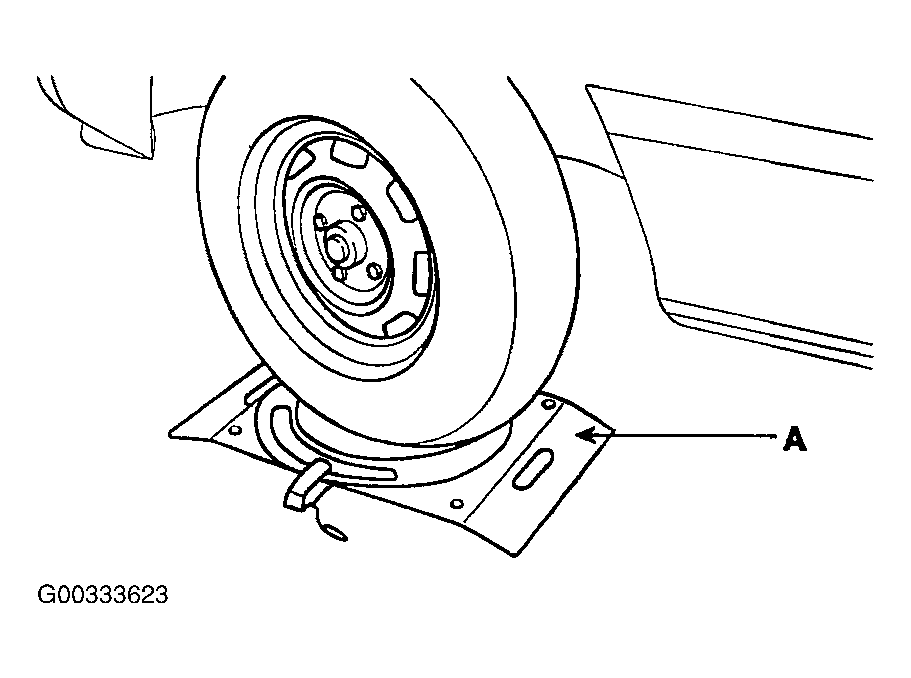

    Fig 1: Checking Steering Angle
    G00333623Courtesy of KIA MOTORS AMERICA, INC.

    Standard Wheel Angle Value:

    • Inner wheel : 37° +/- 0.5°.
    • Outer wheel : 31.8°.

  2. If the measured value is not within the standard value, adjust the linkage.
