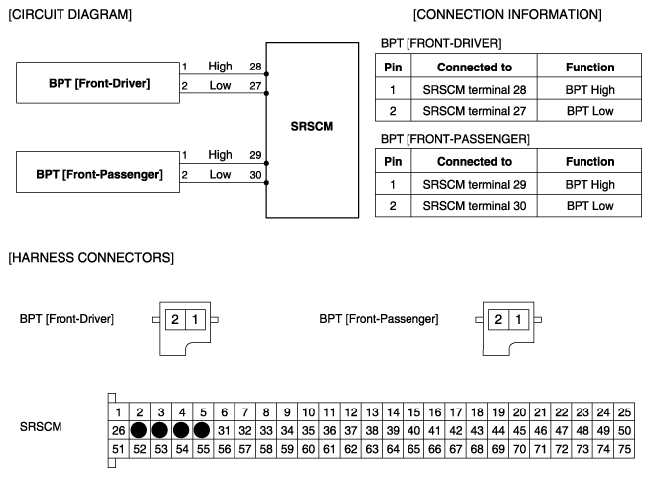

Home >> Kia >> 2009 >> Spectra5 2.0 1, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Supplement Restraint System Control Module (SRSCM) - Except With OCS >> Troubleshooting >> B1364: Seat Belt PRETENSIONER [Front-Driver] Circuit Short To Battery Line; B1370: Seat Belt PRETENSIONER [Front-Passenger] Circuit Short To Battery Line >> Schematic Diagram
