Kia
>>
2009
>>
Spectra5 2.0 1, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Abs/TCS (Anti Lock/Traction Control)
>>
Circuit Diagram
Circuit Diagram

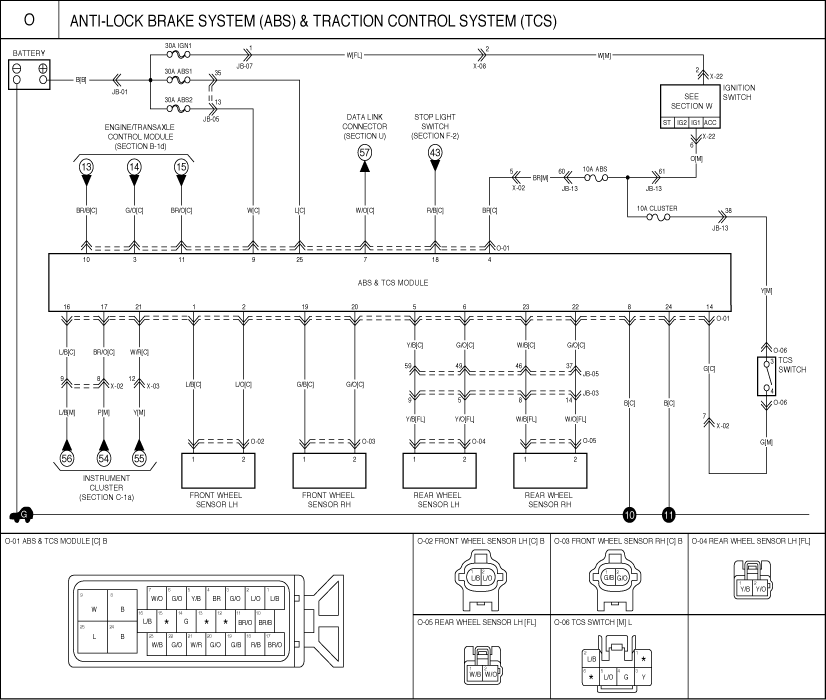

Fig 1: Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
