Components And Components Location: Components

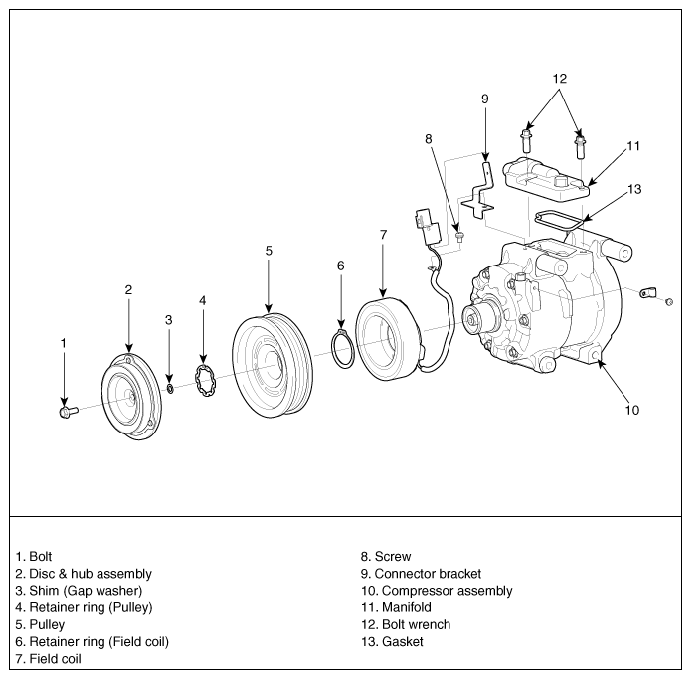

Fig 1: Identifying Compressor Components

G06401204

Courtesy of KIA MOTORS AMERICA, INC.
