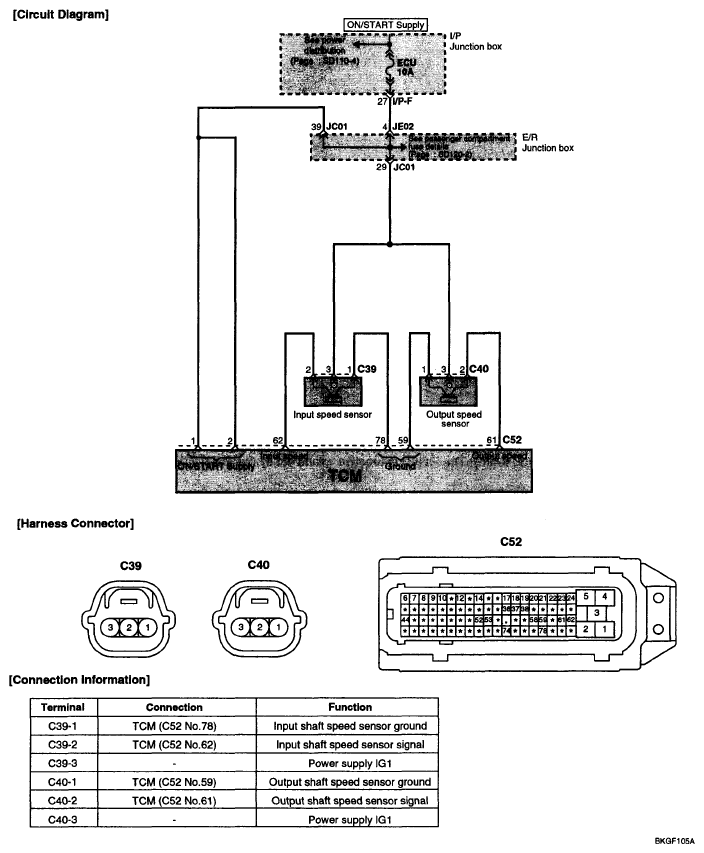

Home >> Kia >> 2009 >> Spectra SX, 2.0 2, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System (A4CF2) >> DTC P0716: Input Speed Sensor Range/Performance >> Schematic Diagram
