Ground Circuit Inspection

Ignition "ON" & Engine "OFF".
Disconnect the "INPUT SPEED SENSOR" connector.
Measure resistance between terminal "1" of the INPUT SPEED SENSOR harness connector and chassis ground.
Specification: approx. 0 Ω

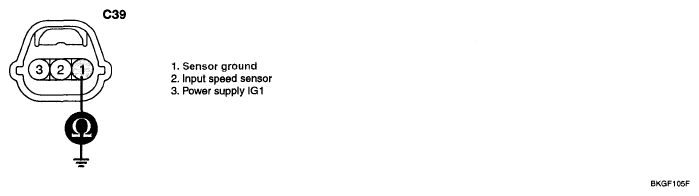

Fig 1: Measuring Resistance Between Terminal "1" Of Input Speed Sensor Harness Connector And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.
Is resistance within specification ?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- If ground circuit in harness is OK, go to step 2.
