VFS (Variable Force Solenoid) Valve: Removal

  1. Remove the battery terminal.
  2. Lift the vehicle.
  3. Remove the under cover.
  4. Loosen the drain plug and drain the transaxle oil.
  5. Remove the oil pan.
  6. Remove the oil filter.
  7. Remove the valve body.
  8. Disconnect the VFS solenoid valve connector (A) from the valve body.

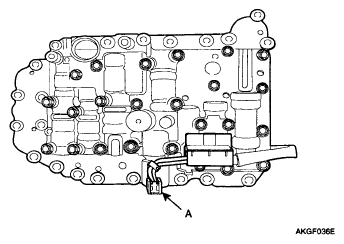

    Fig 1: Identifying VFS Solenoid Valve Connector (A)
    G04864714Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the solenoid valve assembly.
