Components And Components Location: Components

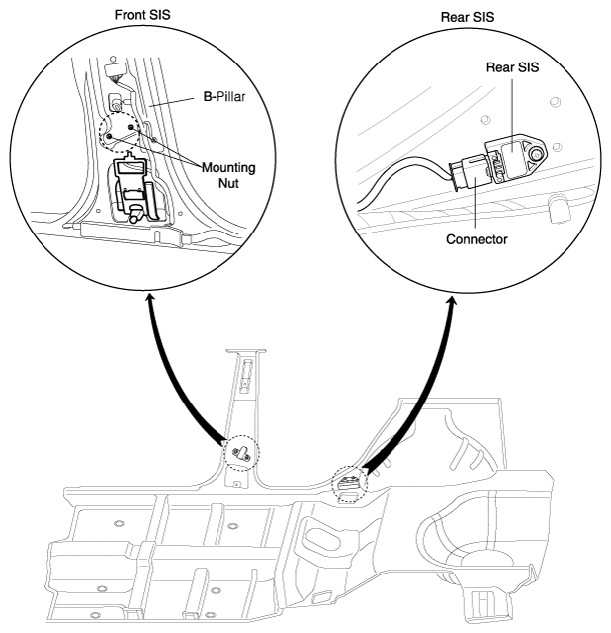

Fig 1: Identifying Mounting Nut, Connector, Rear SIS And B-Pillar Location

G06400531

Courtesy of KIA MOTORS AMERICA, INC.
