Oil Pump

The oil pump is made of the aluminum (the reaction shaft support) to loose the weight and selects the parachoid type to improve the processing and the capacity efficiency at the low RPM range.

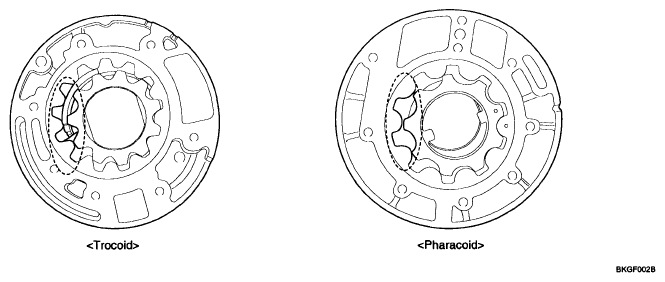

Fig 1: Identifying Oil Pump
G04864536Courtesy of KIA MOTORS AMERICA, INC.
