Automatic Transaxle: Removal

CAUTION:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:

Mark all wiring and hoses to avoid mis-connection.

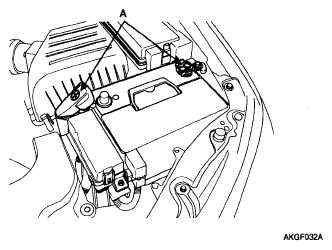

Remove the battery (A).

Fig 1: Locating Battery (A)
Courtesy of KIA MOTORS AMERICA, INC.

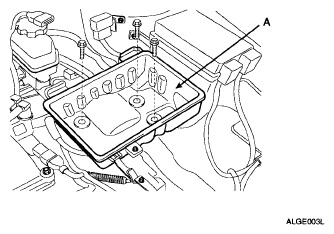

Remove the battery (A) and battery tray (B).

Fig 2: Identifying Battery (A) And Battery Tray (B)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner and air intake hose.

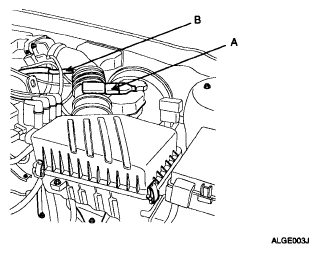

1. Disconnect the air flow sensor connector (A) and breather hose (B).

  Fig 3: Identifying Air Flow Sensor Connector (A) And Breather Hose (B)
  Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the air cleaner upper cover (A) and air intake hose (B).

  Fig 4: Identifying Air Cleaner Upper Cover (A) And Air Intake Hose (B)
  Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the air cleaner lower (A). (Bolt: 3EA).

  Fig 5: Identifying Air Cleaner Bottom Housing
  Courtesy of KIA MOTORS AMERICA, INC.

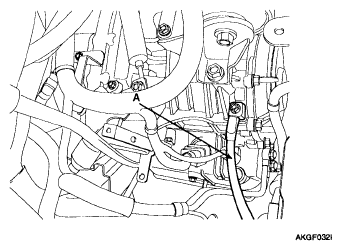

Disconnect the ground cable (A) from the transaxle.

Fig 6: Identifying Ground Cable (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the power steering eye bolt (A).

Fig 7: Identifying Power Steering Eye Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.

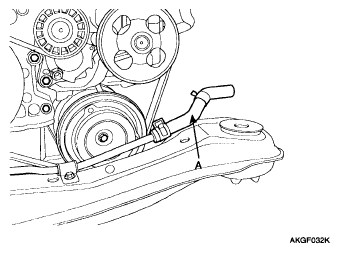

Disconnect the power steering return hose (A).

Fig 8: Identifying Power Steering Return Hose (A)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the solenoid valve (A).

Fig 9: Identifying Solenoid Valve (A)
Courtesy of KIA MOTORS AMERICA, INC.

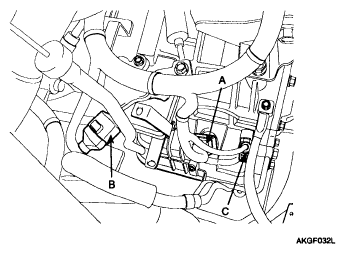

Disconnect the transaxle range switch (B).
Disconnect the input shaft speed sensor connector (C).

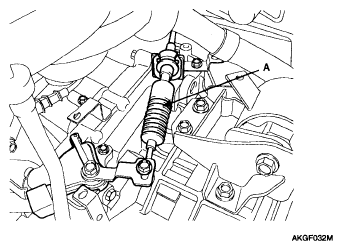

Remove the manual control cable (A) from the manual control lever.

Fig 10: Identifying Manual Control Cable (A)
Courtesy of KIA MOTORS AMERICA, INC.

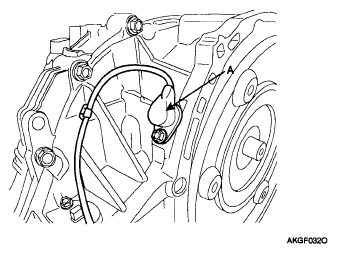

Disconnect the output shaft speed sensor connector (A).

Fig 11: Identifying Output Shaft Speed Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crank shaft position sensor (A).

Fig 12: Identifying Crank Shaft Position Sensor (A)
Courtesy of KIA MOTORS AMERICA, INC.

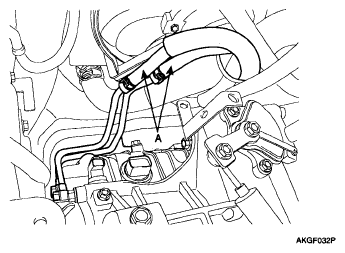

Remove the oil cooler hose (A).

Fig 13: Identifying Oil Cooler Hose (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the starter motor mounting bolt (A). (Bolt: 2EA)

Fig 14: Identifying Starter Motor Mounting Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering U-joint mounting bolt (A).

Fig 15: Identifying Steering U-Joint Mounting Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.

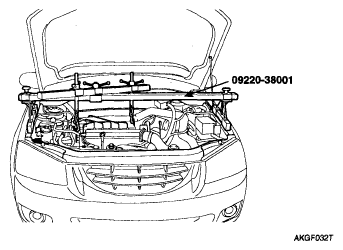

Install the special tools (09200-38001), the engine support fixture and the adapter, on the engine assembly.

Fig 16: Identifying Special Tools (09200-38001)
Courtesy of KIA MOTORS AMERICA, INC.

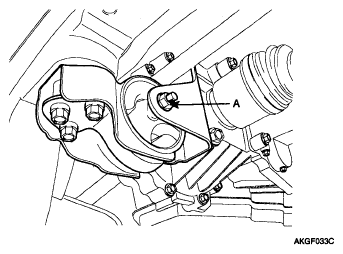

Remove the transaxle mounting insulator bolt (A).
TORQUE: Bolt (A): 90-110 N.m (900-1100 kgf.cm, 65-80 lb-ft)

Fig 17: Identifying Transaxle Mounting Insulator Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle upper mounting bolt (A). (Bolt: 2EA)

Fig 18: Identifying Transaxle Upper Mounting Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the front tires.
Loosen the drain plug (A) and then drain the transaxle oil.

Fig 19: Identifying Drain Plug (A)
Courtesy of KIA MOTORS AMERICA, INC.
Separate the tie rod end (A) from the pin (B) and nut (C).

Fig 20: Identifying Tie Rod End, Pin (B) And Nut (C)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the stabilizer control link nut (A).
TORQUE: 44-62 N.m (440-620 kgf.cm, 32-45 lb-ft)

Fig 21: Identifying Stabilizer Control Link Nut (A)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the lower arm nut (A).
TORQUE: 60-72 N.m (600-720 kgf.cm, 43-52 lb-ft)

Fig 22: Identifying Lower Arm Nut (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front muffler (A).

Fig 23: Identifying Front Muffler (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front roll stopper insulator bolt and nut (A).
TORQUE: 90-110 N.m (900-1000 kgf.cm, 65-80 lb-ft)

Fig 24: Identifying Front Roll Stopper Insulator Bolt And Nut (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear roll stopper insulator bolt and nut (A).
TORQUE: 65-80 N.m (650-800 kgf.cm, 47-58 lb-ft)

Fig 25: Identifying Rear Roll Stopper Insulator Bolt And Nut (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the sub frame bolt and nut.
TORQUE: Bolt (A): 40-55 N.m (400-550 kgf.cm, 29-40 lb-ft)

Nut (B), Bolt (C): 160-180 N.m (1600-1800 kgf.cm, 116-130 lb-ft)

Fig 26: Identifying Sub Frame Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.

Fig 27: Identifying Sub Frame Bolt
Courtesy of KIA MOTORS AMERICA, INC.

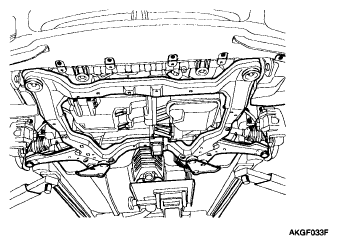

Remove the sub frame.

Fig 28: Identifying Sub Frame
Courtesy of KIA MOTORS AMERICA, INC.
Install the jack for supporting transaxle.
NOTE:
- After removing the sub frame mounting bolts, the transaxle assembly may fall downward, and so support them securely with floor jack.
- Verify that the hoses and connectors are disconnected before removing the transaxle assembly.
- When supporting the transaxle assembly, make sure that the weight is applied to a wide area of the jack surface.
Remove the bell housing cover (A).

Fig 29: Identifying Bell Housing Cover (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the torque converter mounting bolt (A). (6EA)

Fig 30: Identifying Torque Converter Mounting Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle lower mounting bolt.
Remove the transaxle assembly by lifting vehicle.
CAUTION: When removing the transaxle assembly, be careful not to damage any surrounding parts or body components.
