Home >> Kia >> 2009 >> Spectra EX, 2.0 1, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Removal & Installation >> Component

Removal & Installation: Component

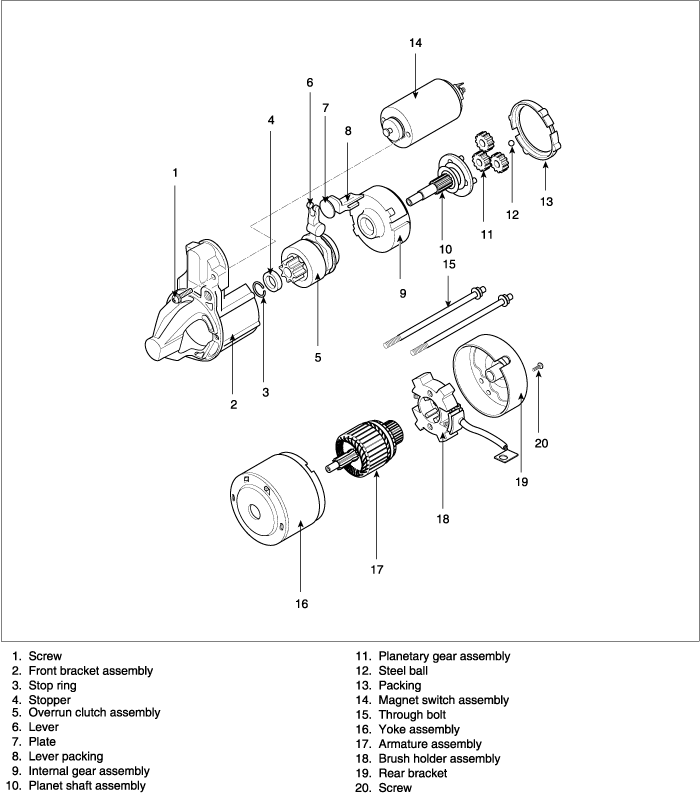

Fig 1: Starter Components

G00488504

Courtesy of KIA MOTORS AMERICA, INC.
