Components and Components Location: Components

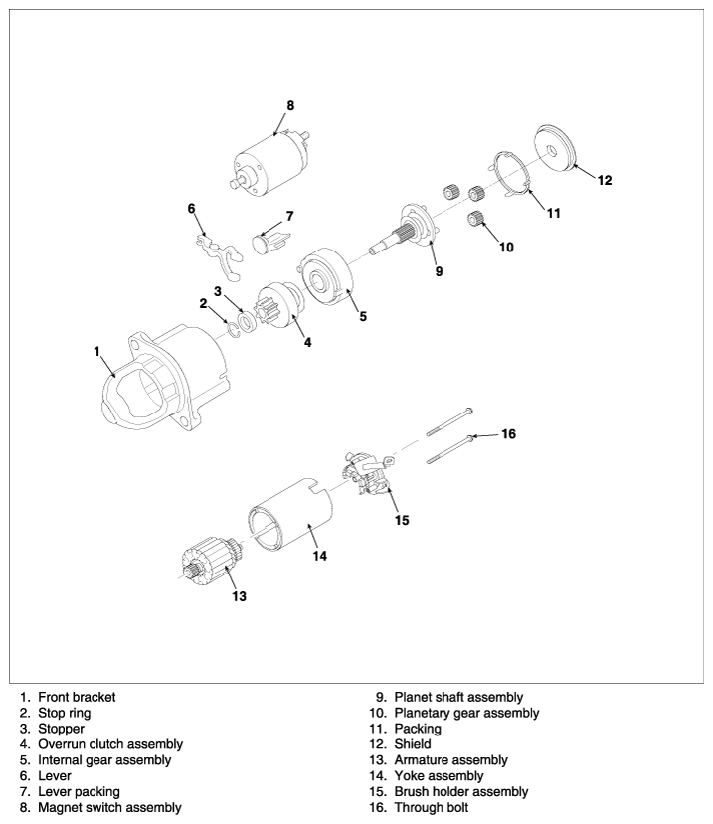

Fig 1: Identifying Starter Components

G06407945

Courtesy of KIA MOTORS AMERICA, INC.
