5th Gear

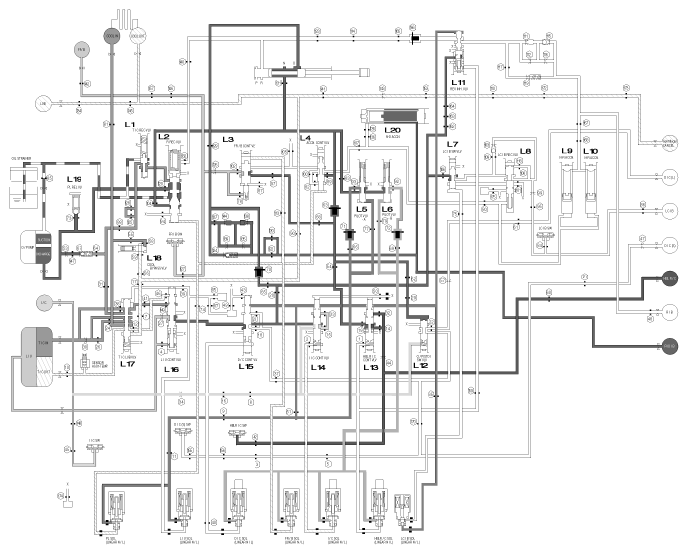

Fig 1: Valve Body Fluid Pressure Circuit Diagram - 5th Gear

G06409148

Courtesy of KIA MOTORS AMERICA, INC.
