Inspection (Caster)

  1. Position the vehicle so that the front wheel is on the turning-radius gauge.
  2. Remove the wheel cover.

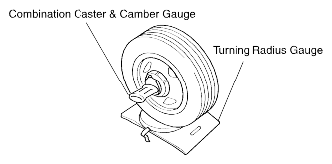

    Fig 1: Measuring Caster
    G06409606Courtesy of KIA MOTORS AMERICA, INC.
  3. Attach a standard caster gauge to the hub and measure the caster.

    Caster:

    3.30° ± 0.5° (No Passenger Load)

    3.55° (2 Passenger Load)
