Adjustment (Caster)

  1. Turn the front spindle clockwise until the number "1" mark is aligned with the vertical line on the spindle bracket.
  2. Turn the rear spindle counter-clockwise until the number "1" mark is aligned with the vertical line on the spindle bracket.

    Each numerical point indicated on the spindle increases the caster by 0.23 degrees when turned to the vertical line.

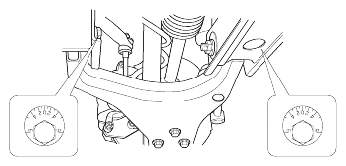

    Fig 1: Identifying Caster Adjustment
    G06409607Courtesy of KIA MOTORS AMERICA, INC.
