Repair Procedures: Installation

Raise the front of the vehicle and support it with safety stands.
Position the upper arm to the frame brackets, insert the bolts and hand tighten the nuts.

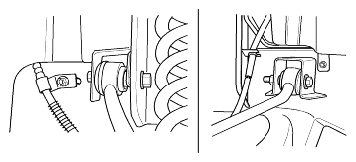

Fig 1: Identifying Upper Arm Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the upper arm ball joint into the top of the steering knuckle and tighten the side bolt and nut.
Tightening torque:

44-55 N.m (4.4-5.5 kg.m, 31-39 lb.ft).

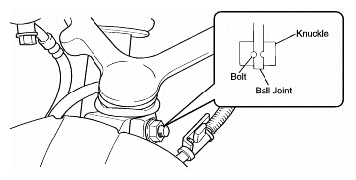

Fig 2: Identifying Upper Arm Ball Joint, Steering Knuckle And Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the upper arm bolts and nuts and then install brake hose brackets.
Tightening torque:

76-95 N.m (7.6-9.5 kg.m, 54-68 lb.ft).

Fig 3: Identifying Upper Arm Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the wheels and secure with lock nuts.
Tightening torque:

90-120 N.m (9-12 kg.m, 65-86 lb.ft).

NOTE: After installation, measure the wheel alignment and adjust if necessary. Refer to Wheel Alignment in "SPECIFICATIONS ".
