Repair Procedures: Removal

Loosen battery cable and mounting bolt and then remove battery.

Fig 1: Identifying Battery Cable And Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove three shock absorber mounting block nuts from the mounting block.

Fig 2: Locating Shock Absorber Mounting Block Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Raise the front of the vehicle and support it with safety stands.
Remove the front wheels.
Remove the bolt on the steering knuckle side that secures the upper arm ball joint.

Fig 3: Locating Upper Arm Ball Joint Bolt
Courtesy of KIA MOTORS AMERICA, INC.

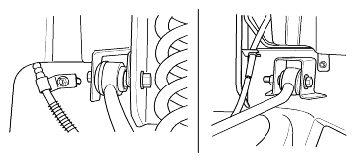

Remove the brake hose bracket and then the remove the upper arm bolts and nuts.

Fig 4: Identifying Upper Arm Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shock absorber lower nut.

Fig 5: Locating Shock Absorber Lower Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the spring and shock absorber assembly from the vehicle as an assembly.
