Repair Procedures: Disassembly

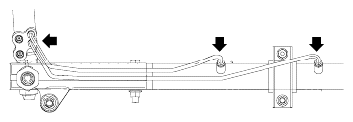

Remove the feed tube.

Fig 1: Locating Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.
Remove the tie rod end from the tie rod.

Fig 2: Removing Tie Rod End
Courtesy of KIA MOTORS AMERICA, INC.
Remove the dust cover from the ball joint.

Fig 3: Removing Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bellows band.

Fig 4: Removing Bellows Band
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bellows clip. Pull the bellows out toward the tie rod.
NOTE: Check for rust on the rack when the bellows are replaced.
Remove the feed tube from the rack housing.

Fig 5: Removing Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.
While moving the rack slowly, drain the fluid from the rack housing.
Unstake the tab washer which fixes the tie rod and rack with a chisel.

Fig 6: Unstaking Tie Rod Tab Washer
Courtesy of KIA MOTORS AMERICA, INC.
Remove the tie rod from the rack.
CAUTION: Remove the tie rod from the rack, taking care not to twist the rack.

Fig 7: Removing Tie Rod
Courtesy of KIA MOTORS AMERICA, INC.
Remove the yoke plug lock nut.

Fig 8: Removing Yoke Plug Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.
Using the special tool (09565-31300), remove the yoke plug.

Fig 9: Removing Yoke Plug Using Special Tool (09565-31300)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rack support spring, yoke support and bushing from the gear box.

Fig 10: Identifying Rack Support Spring, Yoke Support And Bushing
Courtesy of KIA MOTORS AMERICA, INC.
Remove the end plug and self-locking nut.

Fig 11: Identifying End Plug And Self-Locking Nut
Courtesy of KIA MOTORS AMERICA, INC.
Detach the dust seal.
Remove the snap ring with snap ring pliers.
Remove bolts mounting the valve assembly to the rack housing.
Remove the pinion and valve assembly together with the oil seal (upper) using a soft hammer.

Fig 12: Removing Pinion And Valve Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Turn the rack stopper clockwise until the end of the circlip comes out of the slot in the gear housing.

Fig 13: Turning Rack Stopper
Courtesy of KIA MOTORS AMERICA, INC.
When the end of the circlip comes out from the notched hole of the housing rack cylinder, turn the rack stopper counter clockwise and remove the circlip.
CAUTION: Do not damage the rack when disassembling.

Fig 14: Removing Circlip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rack stopper, rack bushing and rack from the rack housing by moving it toward the piston side.
CAUTION: When the rack has been removed, be sure to replace the housing side oil seal with a new one.

Fig 15: Removing Rack Stopper, Rack Bushing And Rack
Courtesy of KIA MOTORS AMERICA, INC.
Remove the O-ring from the rack bushing.

Fig 16: Removing O-Ring From Rack Bushing
Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil seal from the rack bushing.

Fig 17: Removing Oil Seal From Rack Bushing
Courtesy of KIA MOTORS AMERICA, INC.
