Schematic Diagrams

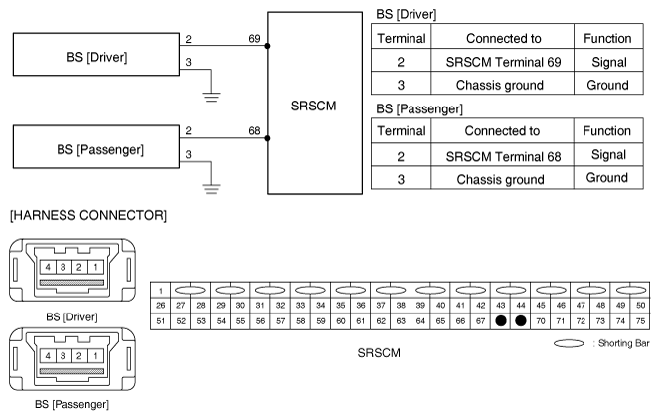

Fig 1: Seat Belt Buckle Switch (BS) - Schematic Diagram

G06410030

Courtesy of KIA MOTORS AMERICA, INC.
