Section 6 (Windshield Wiper/Washer): Troubleshooting

WARNING: This page is about a different car, the 2009 Kia Optima and 2009 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

Wiper low and wiper high do not work.

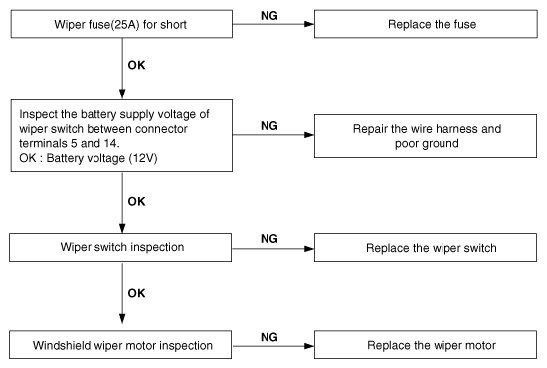

Fig 1: Troubleshooting Chart
Courtesy of KIA MOTORS AMERICA, INC.
When washer switch is on, wiper does not work.

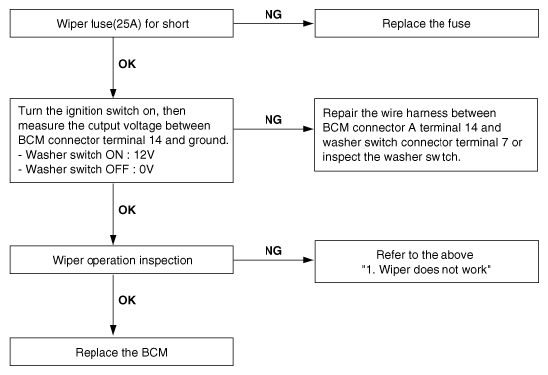

Fig 2: Troubleshooting Chart

Courtesy of KIA MOTORS AMERICA, INC.
