Components (2)

WARNING: This page is about a different car, the 2009 Kia Optima and 2009 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

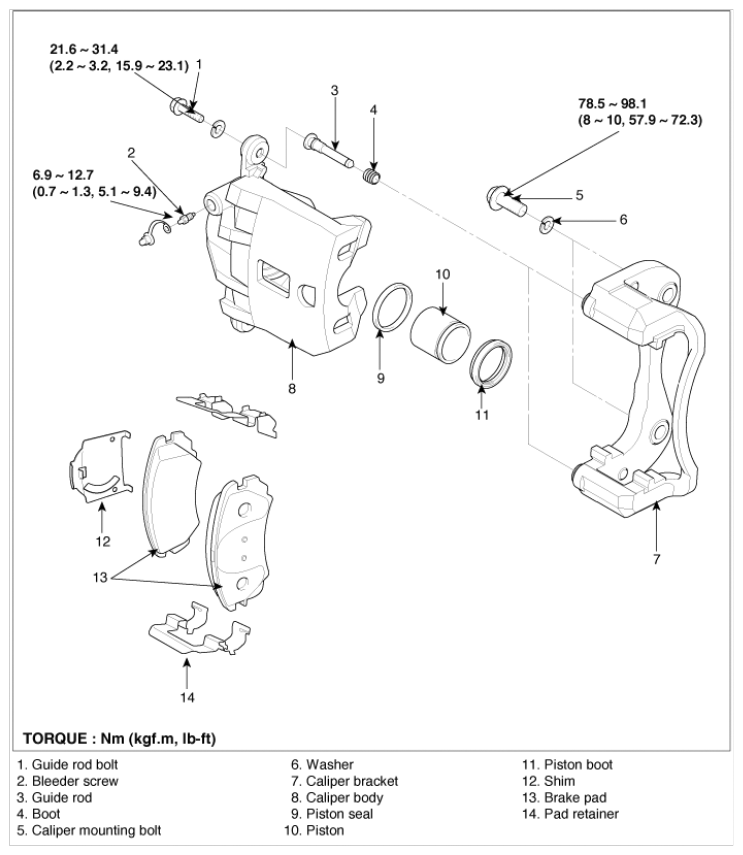

Fig 1: Front Disc Brake Replacement Components With Torque Specifications (2 Of 2)
G06366805Courtesy of KIA MOTORS AMERICA, INC.
