Components and Components Location: components

WARNING: This page is about a different car, the 2009 Kia Optima and 2009 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

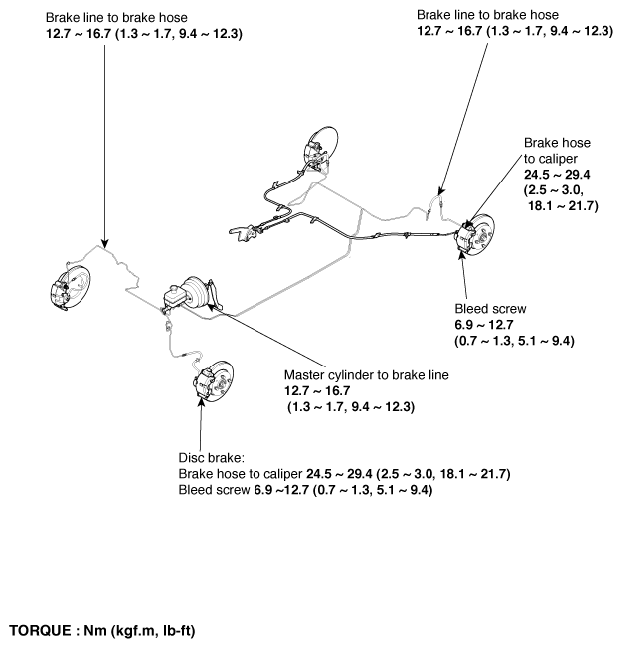

Fig 1: Overview Of Brake Line With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
