Schematic Diagram

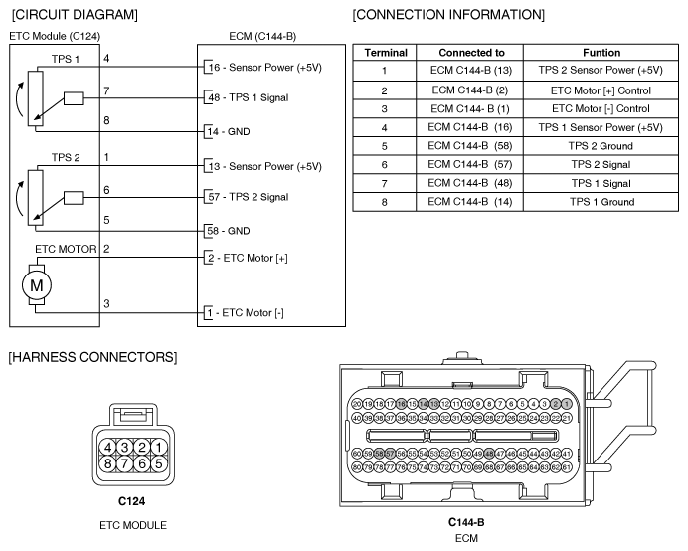

Fig 1: Throttle Actuator Control System-Force Engine Shutdown - Schematic Diagram

G06412130

Courtesy of KIA MOTORS AMERICA, INC.
