Schematic Diagram

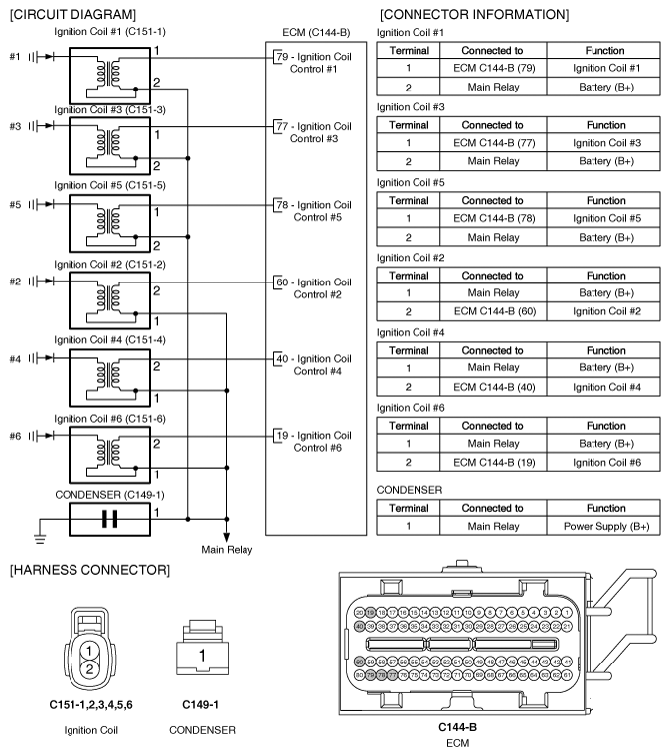

Fig 1: Cold Start Ignition Timing Performance - Schematic Diagram

G06411962

Courtesy of KIA MOTORS AMERICA, INC.
