DTC Troubleshooting Procedures (1 Of 3)
>>
P0140: O2 Sensor Circuit Slow Response (Bank 1/Sensor 2)
>>
Schematic Diagram
Schematic Diagram

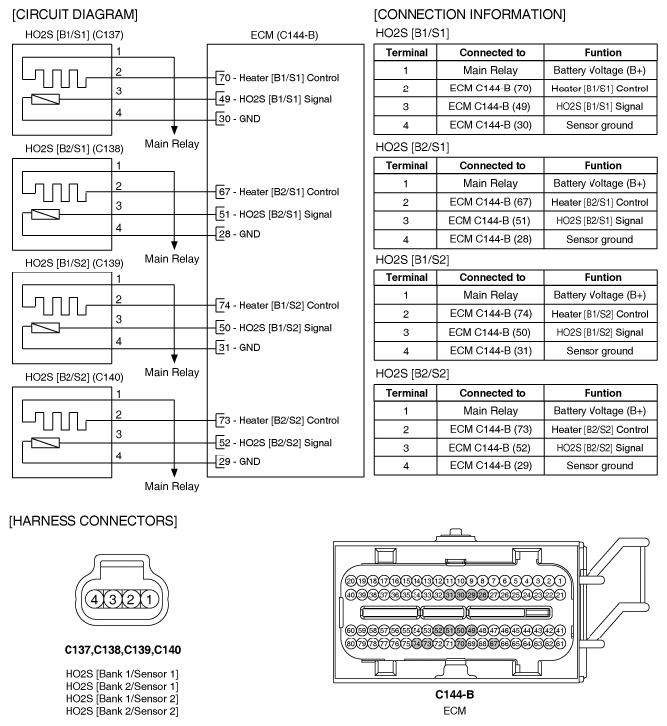

Fig 1: O2 Sensor Circuit Slow Response (Bank 1/Sensor 2) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
