DTC Troubleshooting Procedures (1 Of 3)
>>
P0113: Intake Air Temperature Sensor 1 Circuit High Input
>>
Schematic Diagram
Schematic Diagram

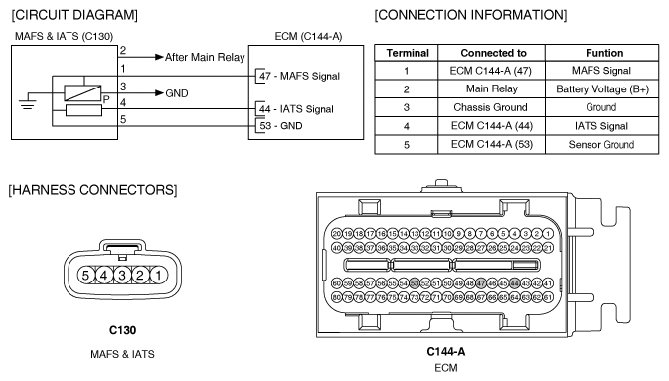

Fig 1: Intake Air Temperature Sensor 1 Circuit High Input - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
