Component Inspection

Check MAPS Performance

IG "OFF" and install scan tool.
Connect probe to MAPS and TPS to check signal waveform by using oscilloscope function.

ENG "ON" and monitor signal waveform during acceleration and deceleration.

■ Specification:

PRESSURE SPECIFICATION

Pressure (kPa)	20	35	60	95	101.32
Voltage (V)	0.789	1.382	2.369	3.75	4
Tolerance (V)	± 0.045

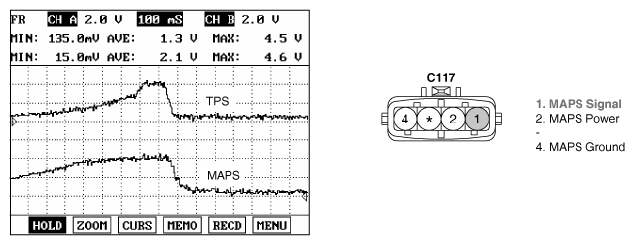

Fig 1: Identifying Signal Waveform

G06411400

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured signal waveform (MAP/TPS Rationality) O.K?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good MAPS and check for proper operation.
- If the problem is corrected, replace MAPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
