DTC Troubleshooting Procedures (1 Of 3)
>>
P0036: Ho2S Heater Control Circuit (Bank 1/Sensor 2)
>>
Schematic Diagram
Schematic Diagram

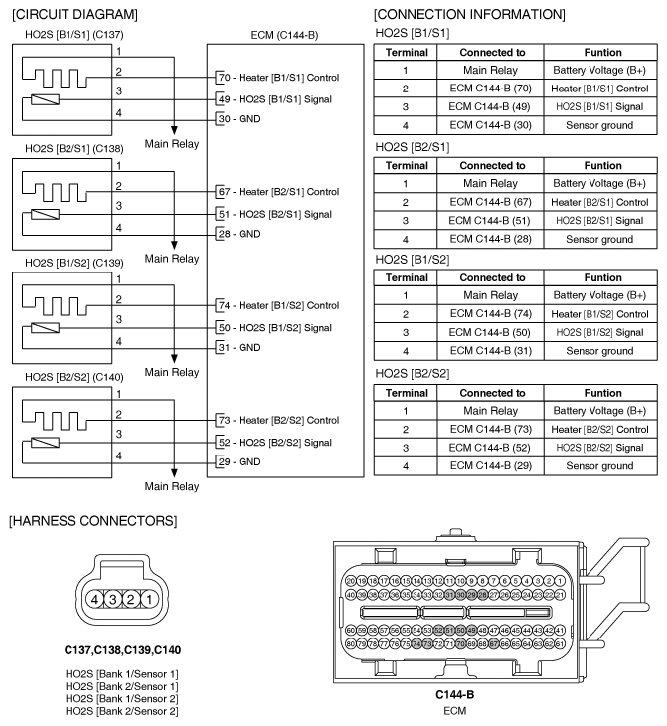

Fig 1: HO2S Heater Control Circuit (Bank 1/Sensor 2) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
