Kia
>>
2009
>>
Sorento Base, A5SR2
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
Purge Control Solenoid Valve (PCSV)
>>
Repair Procedures
>>
Inspection
>>
Schematic Diagram
Schematic Diagram

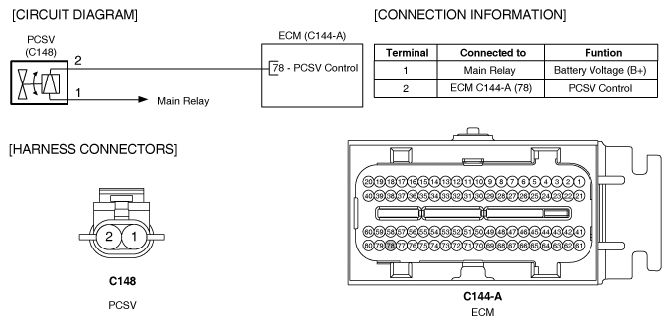

Fig 1: Purge Control Solenoid Valve (PCSV) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
