Schematic Diagram

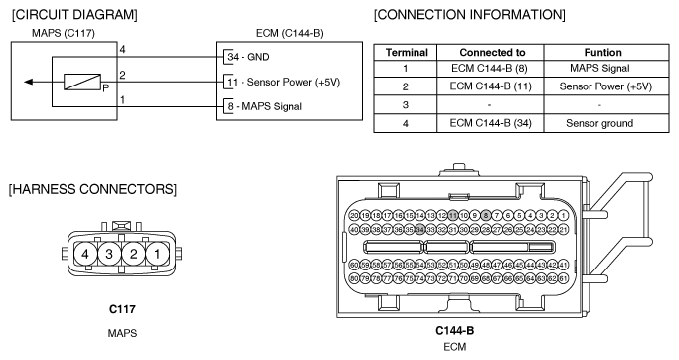

Fig 1: Manifold Absolute Pressure Sensor (MAPS) Schematic Diagram

G06408053

Courtesy of KIA MOTORS AMERICA, INC.
