Components and Components Location: Components

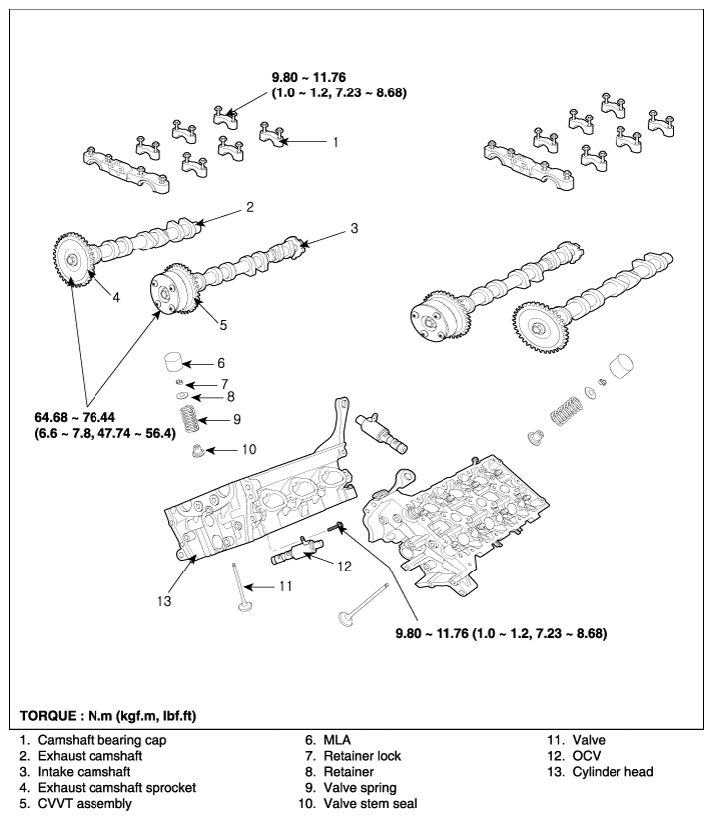

Fig 1: Cylinder Head Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

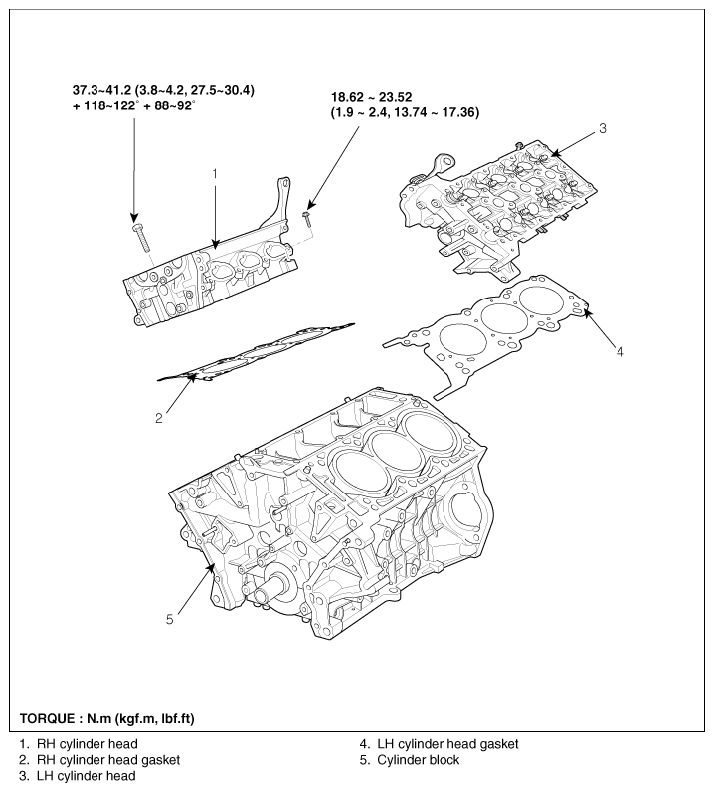

Fig 2: Cylinder Head Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
