Description and Operation: Components

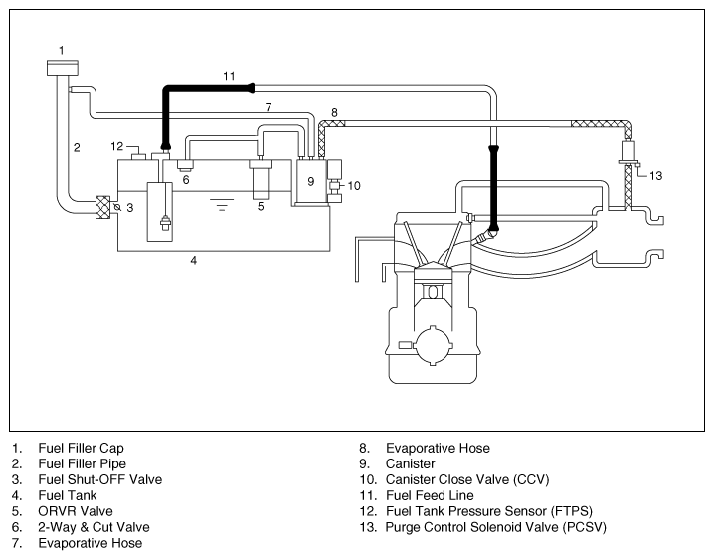

Fig 1: Identifying Evaporative Emission Control System Components
G06407997Courtesy of KIA MOTORS AMERICA, INC.

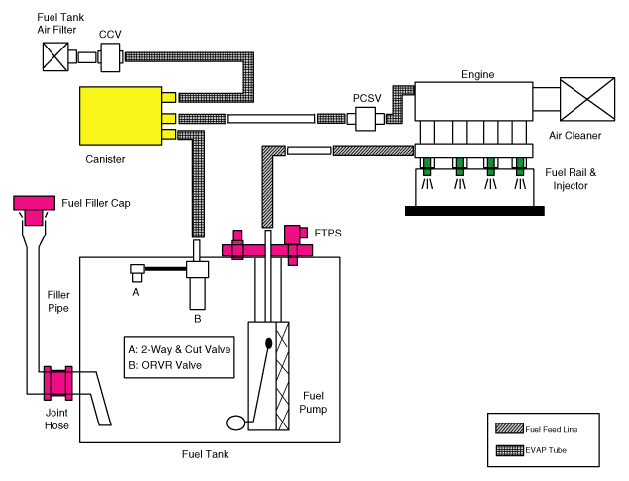

Fig 2: Evaporative Emission Control System Diagram
G06407998Courtesy of KIA MOTORS AMERICA, INC.
