Description and Operation: Description

The trip computer displays information related to driving, including compass, distance to empty, elapsed time, average speed and outside temperature on the display. To change the function as described below, push the MODE/SET button lesser than 0.1~1.5 sec. (DIR → Distance to empty → average speed → elapsed time → outside temperature → OFF, Without outside temperature sensor → elapsed time → OFF → DIR).

Fig 1: Identifying Trip Computer Displays

Courtesy of KIA MOTORS AMERICA, INC.

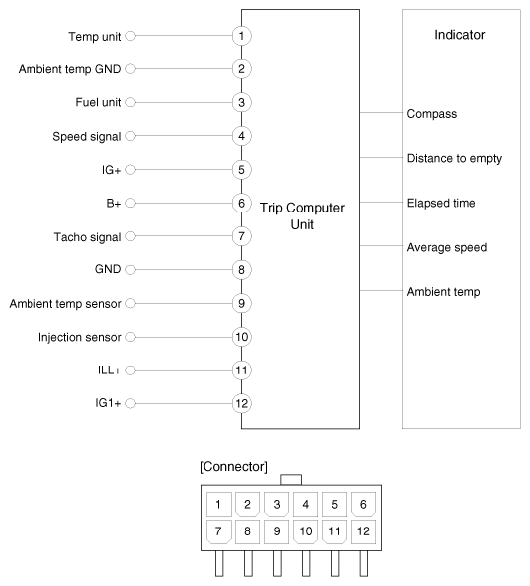

Fig 2: Trip Computer Unit Chart

Courtesy of KIA MOTORS AMERICA, INC.
