Monitor Scantool Data

  1. Connect scantool to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF"
  3. Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter on the Scantool.

    Specification: "LEARNT"

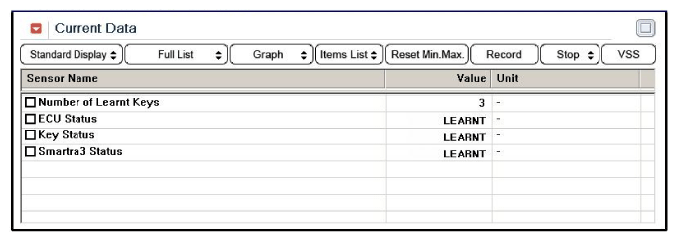

    Fig 1: Screen Display - Number Of Learnt Keys
    G06410956Courtesy of KIA MOTORS AMERICA, INC.
  4. Has the "SMARTRA STATUS" been learnt?

    YES

    • Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then register transponder and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
