Monitor Scantool Data

  1. Check status
    1. IGN "ON" & Engine "OFF"
    2. Monitor the "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter on the Scantool.

      Specification: "LEARNT"

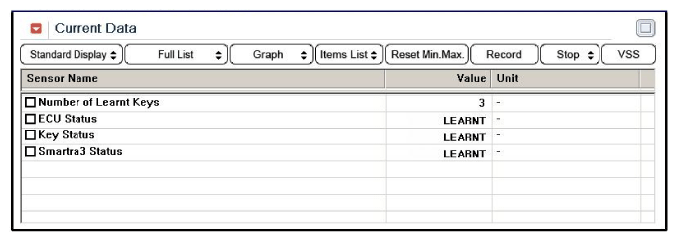

      Fig 1: Screen Display - Number Of Learnt Keys
      G06410947Courtesy of KIA MOTORS AMERICA, INC.
    3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, damage on the ECM or SMARTRA. And this DTC has not erased in previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
