Monitor Scantool Data

Check status
1. IGN "ON" & Engine "OFF"
2. Monitor the "ECM, Key and Smartra Status" Parameter on the Scantool.
  Specification: 'LEARNT'

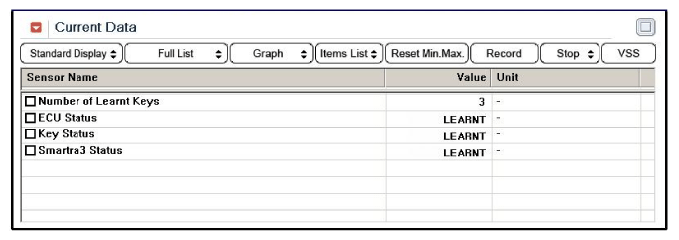

  Fig 1: Screen Display - Current Data
  Courtesy of KIA MOTORS AMERICA, INC.
3. Have both the ECM and KEY status been learnt?
  YES
  - Substitute with known good "virgin" transponder and go to "COMPONENT INSPECTION " Procedure.
  NO
  - Go to "COMPONENT INSPECTION " Procedure.
